It's Not Always DNS: Exploring How Name Resolution Works
An exploration of DNS and Name-to-IP translation. This deep dive explores NSS, getaddrinfo, systemd-resolved and more!

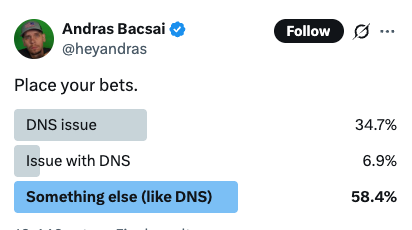

Breaking news: the internet broke last week and DNS wasn’t responsible. People refused to believe it at first, but Cloudflare’s blog post left no room for doubt. The meme-sphere, with its repetitive-but-funny “it’s always DNS” felt a pang of disappointment.
The real issue was a ballooning config file that caused a widely deployed program to fail because it couldn’t handle files that large.
Anyway, that was the first meaning behind this blog post’s title. The second is that there’s more to name resolution than DNS alone. It’s not just DNS.
So, in the spirit of exploring the technologies that make our world work, the ones we rely on every day, this post will take a closer look at DNS and its friends.
DNS: What it is and why we need it
Computers communicate over the network using IP addresses. To reach a process running on a remote machine (a web server, email server, etc.), you need an IP to get to the computer and a port to identify the service. 172.253.135.139:443 is a web service listening on port 443 (HTTPS) on a machine whose IP is 172.253.135.139, which happens to be a Google IP.
So if you need to access a service, you need these numbers. But humans don’t do well with numbers, we prefer google.com to 172.253.135.139. Using names also allows admins to switch IP addresses without disrupting users.
We need a way to translate (resolve) names to IPs. DNS is one way to do so. The /etc/hosts file with name/IP mappings is another. LDAP is a third. So when it comes to name resolution, it’s NOT always DNS (ok, enough silliness).
In the early days of the internet, before DNS, there was a central hosts.txt file that contained all computer names and their IPs (there weren’t that many). Each host would periodically update its local copy from that central file. This, of course, proved to be unscalable.
The basic function of DNS is simple: you provide it with a domain name, and it provides a Resource Record containing information about that name.
DomainName Time-to-live Class Type Value
The domain name is what we’re interested in, for example, cefboud.com (what a completely random choice!). Time-to-live (TTL) indicates how long a record should be cached. Longer TTLs improve caching and performance, but slow down updates. The Class is almost always IN (internet). The Type defines the purpose of the record. Value is the actual data stored in the record. Here a record of Type A that provides the IPv4 address of cefboud.com, it has a TTL (cache validity) of 86400 seconds (24 hours).
cefboud.com. 86400 IN A 185.199.109.153
In most cases, the value is an IP address in the form of an A record for IPv4 or an AAAA record for IPv6. But many other record types exist. For example, email uses MX records, which indicate the host willing to accept mail for that domain. Aliases (CNAME) are another popular type. If there is a CNAME record like:
hi.cefboud.com. 86400 IN CNAME hello.cefboud.com.
it means that hi.cefboud.com is an alias for hello.cefboud.com, and accessing the former is equivalent to accessing the latter.
Another type is PTR, used to perform what’s called a reverse lookup: mapping an IP address back to a name instead of the other way around.
The final type we’ll mention is TXT, which holds arbitrary text. This can be used, for example, to prove ownership of a domain. In the ACME protocol (automatic certificate generation), one challenge requires creating a TXT record with a specific value provided by the certificate issuer. If you publish the TXT record with that value, you prove ownership or control of the domain.
A DNS Query from Scratch
A piece of code always makes things more real. You can taste the protocol. Here is a simple Go program that sends a UDP request to 8.8.8.8:53 (Google Nameserver) following the DNS format then parses the result:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
func main() {
if len(os.Args) < 2 {
fmt.Println("usage: main <domain>")
return
}
domain, dns_server := os.Args[1], "8.8.8.8:53"
q, id := buildDnsQuery(domain) // build DNS query
r, _ := sendAndReceiveUDP(dns_server, q) // send+recv UDP
parse_response(r, id) // print A records
}
func buildDnsQuery(d string) ([]byte, uint16) {
id := uint16(time.Now().UnixNano())
h := make([]byte, 12)
binary.BigEndian.PutUint16(h, id) // TXID (random from current timestamp)
binary.BigEndian.PutUint16(h[2:], 0x100) // recursion desired
binary.BigEndian.PutUint16(h[4:], 1) // QDCOUNT=1
return append(append(h, encodeDomain(d)...), 0, 1, 0, 1), id // QTYPE=1, QCLASS=1
}
func sendAndReceiveUDP(s string, q []byte) ([]byte, error) {
c, _ := net.Dial("udp", s)
defer c.Close()
c.SetDeadline(time.Now().Add(3 * time.Second))
c.Write(q)
b := make([]byte, 512)
n, _ := c.Read(b)
return b[:n], nil
}
func parse_response(b []byte, id uint16) {
if binary.BigEndian.Uint16(b) != id {
return // resposne id different than expected one
}
qd, an := int(binary.BigEndian.Uint16(b[4:])), int(binary.BigEndian.Uint16(b[6:]))
o := 12
for i := 0; i < qd; i++ {
_, o = decode_name(b, o)
o += 4
} // skip questions
for i := 0; i < an; i++ { // print A answers
_, o2 := decode_name(b, o)
t := binary.BigEndian.Uint16(b[o2:])
l := int(binary.BigEndian.Uint16(b[o2+8:]))
r := b[o2+10 : o2+10+l]
o = o2 + 10 + l
if t == 1 && len(r) == 4 {
fmt.Println(net.IP(r))
}
}
}
func encodeDomain(d string) []byte { // encode domain labels. Split by '.' then (len + char bytes) and end with 0
var o []byte
for _, l := range strings.Split(d, ".") {
o = append(o, byte(len(l)))
o = append(o, l...)
}
return append(o, 0)
}
// func decode_name(b []byte, o int) (string, int) { // reverse of encodeDomain with support for compression (back references)
1
2
3
go run main.go cefboud.com
# 185.199.109.153
# 185.199.110.153
What are we doing here? Without getting too much into the weeds of the DNS message format, a DNS packet consists of a header (with a 16-bit transaction ID and 16 bits of flags for various options), followed by questions (basically a domain name and the desired record type: A, AAAA, MX, etc.), and then an answer, which contains the Resource Records we saw above. A respectable protocol.
Since DNS typically uses UDP (falling back to TCP for large packets), it’s very simple: you send a stream of bytes containing a domain name and record type (a question), and you get back an answer containing the requested information (usually an IP address).
Zones
A zone is the unit of management in DNS. Each zone has its own name servers, hosts that store the database of Resource Records (RRs) for that zone. There is no mandatory mapping between a domain and a zone. For example, one could manage cefboud.com and all its subdomains except for special.cefboud.com, which could be managed in its own separate zone. In that case, the cefboud.com zone would have an NS record delegating authority for that subdomain to the appropriate name servers. This is DNS delegation.
Usually there is one primary server per zone that stores the data in a file, and a couple of secondary servers that pull (replicate) their data from the primary. An “authoritative record” is a record returned by the name server responsible for the domain in question as opposed to a cached record returned by some other DNS server.
DNS is hierarchical. For blog.cefboud.com, the resolution process looks like this:
- Ask a root server for the name servers of
.com. - Ask the
.comname servers for the name servers ofcefboud.com. - Ask those servers about
blog.cefboud.com.
This is called iterative mode.
1
2
3
4
Root (.)
└── .com NS
└── cefboud.com NS
└── blog.cefboud.com (A/AAAA)
The other approach is recursive: you ask a resolver such as Google’s 8.8.8.8, and it either returns a cached answer or performs all the necessary querying on your behalf.
Root DNS servers exist and form essential infrastructure for the internet, they’re the starting point for all DNS resolution.
If you want an iterative DNS server, it needs to be seeded with the root servers. IANA provides files containing the names and IP addresses of these servers. This is where the Internet’s life begins: the Immaculate Internet-ception!
Local DNS servers or popular public ones like Google (8.8.8.8) or Cloudflare (1.1.1.1) save enormous amounts of traffic through caching. Since most people access many of the same websites, these recursive resolvers perform a lookup once per TTL, and millions of users simply receive it from cache. One can imagine how this gives these resolvers, or rather, the companies operating them, extremely valuable and sensitive information (basically internet users activity).
In sum, DNS is essentially a massive, worldwide distributed database. Anywhere in the world, you can look up a key (a domain name), specify a record type (A, AAAA, MX, etc.), and get a response.
The Black Hole that is getaddrinfo()
When exploring DNS (or looking at how name resolution is implemented in many programming languages), you’re bound to stumble upon getaddrinfo(). This function is powerful enough that it even has its own config file, /etc/gai.conf, which can be used to change the sorting order of entries returned by getaddrinfo() (for example, preferring IPv4 addresses over IPv6).
Given node and service, which identify an Internet host and a service, getaddrinfo() returns one or more addrinfo structures, each of which contains an Internet address that can be specified in a call to bind() or connect()
So getaddrinfo() takes a host name and a service (e.g., http, ftp, etc.) and returns something you can pass to bind() or connect(), meaning something that’s directly relevant to networking: an IPv4 or IPv6 address and a port.
There is also a file, /etc/services, used by getaddrinfo() to translate a human-readable service name to a port number:
1
2
3
4
5
6
7
8
9
10
cat /etc/services
# ...
# ftp 21/tcp
# fsp 21/udp fspd
# ssh 22/tcp # SSH Remote Login Protocol
# ...
# ntp 123/udp # Network Time Protocol
# ..
# https 443/tcp # HTTP protocol over TLS/SSL
# https 443/udp # HTTP/3
Here is a very basic example of using getaddrinfo:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netdb.h>
#include <arpa/inet.h>
int main(int argc, char *argv[]) {
struct addrinfo hints, *res, *p;
char ipstr[INET6_ADDRSTRLEN];
memset(&hints, 0, sizeof hints);
int status = getaddrinfo(argv[1], NULL, &hints, &res);
if (status != 0) {
fprintf(stderr, "getaddrinfo: %s\n", gai_strerror(status));
return 2;
}
printf("IP addresses for %s:\n\n", argv[1]);
for (p = res; p != NULL; p = p->ai_next) {
void *addr;
char *ipver;
if (p->ai_family == AF_INET) { // IPv4
struct sockaddr_in *ipv4 = (struct sockaddr_in *)p->ai_addr;
addr = &(ipv4->sin_addr);
ipver = "IPv4";
} else { // IPv6
struct sockaddr_in6 *ipv6 = (struct sockaddr_in6 *)p->ai_addr;
addr = &(ipv6->sin6_addr);
ipver = "IPv6";
}
inet_ntop(p->ai_family, addr, ipstr, sizeof ipstr);
printf(" %s: %s\n", ipver, ipstr);
}
freeaddrinfo(res);
return 0;
}
We provide a domain name as argv[1] (the first command-line argument) and pass an addrinfo pointer that will hold a linked list of the returned IP addresses (both IPv4 and IPv6). We then traverse the list until we hit NULL:
1
(p = res; p != NULL; p = p->ai_next)
and print the results after converting each binary address into human-readable form using inet_ntop.
1
2
3
4
5
gcc -o get_ip get_ip.c && ./get_ip cefboud.com
# IP addresses for cefboud.com:
# IPv6: 2606:50c0:8001::153
# ...
# IPv4: 185.199.109.153
Name Service Switch and GlibC
A Linux OS is more than just a kernel, a lot of the heavy lifting is done in the standard C library, most notably glibc. getaddrinfo is implemented there. And this is where the “black hole” aspect comes into play.
The implementation relies on the Name Service Switch, or NSS, which handles pluggable, modular name resolution. In /etc/nsswitch.conf on my Ubuntu box, I am seeing the following line:
1
hosts: files dns
getaddrinfo is just a frontend to these actual name-resolution modules.
This line indicates the lookup order: files (/etc/hosts) then dns. Another powerful module is resolve or systemd-resolved which we’ll get to in a second.
Each module has its own shared library:
1
2
3
4
5
6
ls /lib/aarch64-linux-gnu/
# ..
# libnss_dns.so.2
# libnss_files.so.2
# libnss_systemd.so.2
# ..
You can even create your own custom name-resolution library, reference it in nsswitch.conf , and have NSS and therefore getaddrinfo() and anything that depends on it, use it.
The dns module in nsswitch.conf corresponds to libnss_dns, which is implemented in glibc and relies on /etc/resolv.conf to determine which nameserver to send DNS requests to:
1
2
cat /etc/resolv.conf
nameserver 127.0.0.53
127.0.0.53?? That’s a local address. Very intriguing! We’ll return to this mystery in a moment.
So libnss_dns sends a DNS query to the configured nameserver, parses the result, and returns it to getaddrinfo. But aside from that, not much magic happens and crucially, there is no caching.
systemd-resolve
We saw resolve above and also noticed a libnss_systemd library in our GNU libraries folder. These refer to a systemd service responsible for name resolution. It handles a lot of other DNS features (DNSSEC, multicast DNS for small devices, and others). The nameserver configured earlier as 127.0.0.53 is actually systemd-resolved acting as a DNS stub, taking care of communicating with external nameservers. And importantly, it implements caching!
resolvectl is used to interact with systemd-resolved. We can check the cache, view statistics, and configure upstream nameservers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
resolvectl show-cache
# ...
# google.com IN A 172.253.135.100
# cefboud.com IN A 185.199.109.153
# ...
resolvectl statistics
# ...
# Cache
# Current Cache Size: 7
# Cache Hits: 2
# Cache Misses: 17
# ...
# empty the cache (cache is in memory, so restarting also clears it)
resolvectl flush-caches
Every time I run nslookup <domain> or any command that triggers name resolution (curl, ping, etc.), I can see the cache statistics change: a +1 or +2 in cache size and cache misses if it’s the first time I’ve queried that domain, or a +1/+2 in cache hits if the domain is already cached.
One other interesting thing is that the default nameservers used by Linux systems running systemd-resolved are specified here:
1
value : '1.1.1.1#cloudflare-dns.com 8.8.8.8#dns.google 9.9.9.9#dns.quad9.net 1.0.0.1#cloudflare-dns.com 8.8.4.4#dns.google 149.112.112.112#dns.quad9.net 2606:4700:4700::1111#cloudflare-dns.com 2001:4860:4860::8888#dns.google 2620:fe::fe#dns.quad9.net 2606:4700:4700::1001#cloudflare-dns.com 2001:4860:4860::8844#dns.google 2620:fe::9#dns.quad9.net'
I believe these are fallback values and are used only when no DNS servers are provided by the local network (DHCP) or via resolv.conf. Still, it’s something to think about, how much value and power a default can carry!
Making sure it’s not all bogus
Is all of this bogus? How can we be sure the docs and the code aren’t lying? Let’s run strace and print all the syscalls used when pinging yours truly’s website.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
strace -o /tmp/strace-ping ping cefboud.com
cat /tmp/strace-ping | grep "/etc/"
# openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
# newfstatat(AT_FDCWD, "/etc/nsswitch.conf", {st_mode=S_IFREG|0644, st_size=526, ...}, 0) = 0
# openat(AT_FDCWD, "/etc/nsswitch.conf", O_RDONLY|O_CLOEXEC) = 5
# read(5, "# /etc/nsswitch.conf\n#\n# Example"..., 4096) = 526
# newfstatat(AT_FDCWD, "/etc/resolv.conf", {st_mode=S_IFREG|0644, st_size=920, ...}, 0) = 0
# openat(AT_FDCWD, "/etc/host.conf", O_RDONLY|O_CLOEXEC) = 5
# openat(AT_FDCWD, "/etc/resolv.conf", O_RDONLY|O_CLOEXEC) = 5
# openat(AT_FDCWD, "/etc/hosts", O_RDONLY|O_CLOEXEC) = 5
# openat(AT_FDCWD, "/etc/gai.conf", O_RDONLY|O_CLOEXEC) = 5
# newfstatat(AT_FDCWD, "/etc/resolv.conf", {st_mode=S_IFREG|0644, st_size=920, ...}, 0) = 0
# newfstatat(AT_FDCWD, "/etc/nsswitch.conf", {st_mode=S_IFREG|0644, st_size=526, ...}, 0) = 0
# openat(AT_FDCWD, "/etc/hosts", O_RDONLY|O_CLOEXEC) = 5
Isn’t this beautiful? We see it all: nsswitch.conf used by NSS, resolv.conf used by glibc’s libnss_dns module, gai.conf used by getaddrinfo(), and even /etc/hosts, which is read by the files module specified in nsswitch.conf.
